Key Features
Excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals.
Recommended Applications: Fuel return, fuel ventilation, crankcase ventilation, turbo oil return, power steering return, automatic transmission oil cooler.
Do not use this hose as a fuel line where the working pressure exceeds 55 psi.
Do not use this hose for continuous handling of alcohol fuels.
Do not fully submerge the hose in fuel during use.

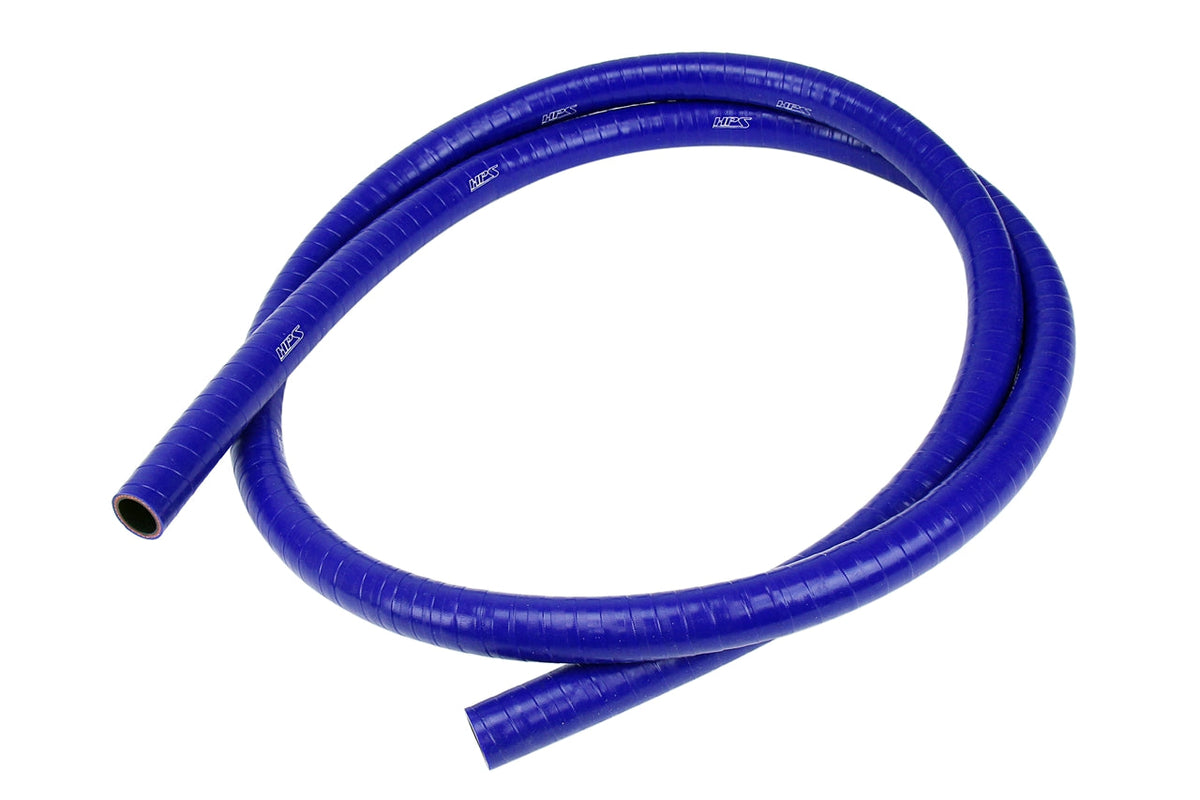

HPS Performance 7/8" FKM-lined silicone hose is a specially developed hose that features a fluoroelastomer liner inside our world-class silicone hose. The 7/8 inch (22mm) inner diameter HPS Performance FKM-lined silicone hose is highly resistant to the harsh effects of gasoline, diesel, and automotive oils. FKM-lined hoses can be used where conventional silicone hoses would degrade due to the fluids flowing through them. Using an FKM liner minimizes permeation, evaporation, and degradation of the silicone hose. HPS Performance FKM-lined hoses offer superior resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals. FKM can handle intermittent exposure to ethanol-based fuels. Technical Specifications: Temperature Range: -65°F to +350°F (177°C). Maximum Working Pressure: 41 psi. Hose Inner Diameter: 7/8 inch (22mm). Hose Outer Diameter: 1-3/16 inch (30mm). Length: 2 feet. Wall Thickness: 4mm +/- 0.2mm. Bend Radius: 5-1/2 inches. Recommended applications for HPS Performance FKM-lined silicone hose: Fuel return, fuel ventilation, crankcase ventilation, turbo oil return, power steering return, automatic transmission oil cooler. Notes: Do not use this hose as a fuel line where the working pressure exceeds 34 psi, and do not use it for continuous handling of alcohol fuels. Do not fully submerge the hose in fuel during use.
Before Ordering
〇 Regarding Import Consumption Tax
At the Shafutoya shopping site, we pay the import consumption tax incurred upon importation on your behalf, so there will be no additional charges beyond the total amount paid at checkout.
〇 Compatibility Check
Our entire product database is based on North American vehicles (USDM), so please verify compatibility with Japanese vehicles (JDM) before placing your order. (Please feel free to contact us if you are unsure if a listed product is compatible with your vehicle. Our support team will look it up for you.)
If an order is placed without verifying compatibility, we cannot accept returns due to incompatibility.
Please note that even if products are sorted by selecting the year, manufacturer, and vehicle model in the tabs on our top page, this does not necessarily mean they will fit Japanese model vehicles without modification.
All products have been translated into Japanese using translation software. As there may be confusing expressions, please contact us before ordering if you have any questions.
○ Regarding Shipping
Shipping costs are paid at the time of checkout. Shipping estimates are calculated automatically when you enter your shipping address on the checkout page. For large items such as body parts, there are rare cases where there is a significant difference between the automatically calculated shipping cost and the actual shipping cost. In such cases, we will contact you individually by email.
Basically, all products are shipped internationally from our U.S. warehouse. Unlike domestic shipping in Japan, international shipping takes about 7 to 14 days, so please order with enough time to spare. If you are in a hurry, please contact us in advance to check delivery times. Note that all products are transported by air; they are never shipped by sea freight.
○ Regarding Japanese Vehicle Inspection (Shaken) Compatibility
Basically, all products we handle are designed and manufactured outside of Japan. Please note that they are not compliant with the "Japanese vehicle inspection system," and we cannot provide strength calculation documents or similar paperwork for this purpose. Therefore, all parts are sold for the purpose of "use on circuits, private property, or off public roads," and installation and use are at your own risk.
○ Regarding Warranty
Please check the contents immediately upon arrival. Since all products are shipped internationally from outside Japan, there may be delivery damage to the packaging or the product itself. Please understand that we will only provide returns, refunds, or replacement products if you contact us within 7 days of receipt regarding products with delivery damage, defective products, or incorrect items. Furthermore, for products sold through us, we will provide warranty support "only through us." Please note that we do not provide support through other companies or distributors located in Japan.
