Key Features

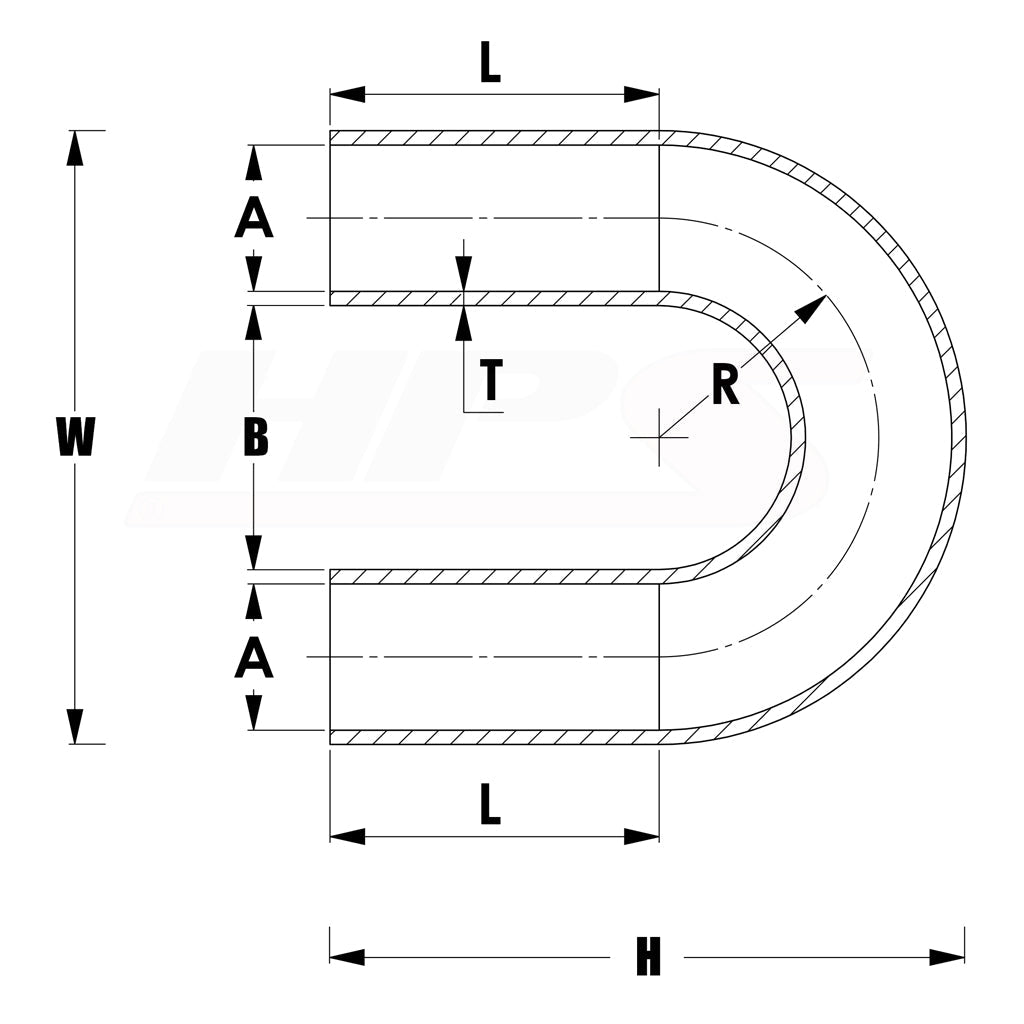

Inside Diameter: 5/8 inch (16 mm). Outside Diameter: 1.03 inches (26 mm). Leg Length on each side: 4-1/2 inches. Center Line Radius: 1 inch.
Outer Width (W): 3 inches. Inner Width (B): 1 inch. Total Height: 6-1/2 inches.
Meets and exceeds SAEJ20 industry standards, ideal for heavy-duty pressure connections and provides excellent resistance for high-temperature applications.
Ideal for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling systems.
Made of 4-ply high-temperature reinforced silicone, with UV and ozone resistance, but NOT compatible with fuel or coolant.
HPS 5/8 inch (16mm) High Temperature 4-ply Reinforced Silicone 180 Degree U-Bend Elbow Coupler Hose meets and exceeds SAEJ20 industry standards, ideal for heavy-duty pressure connections and provides excellent resistance for high-temperature applications. HPS Performance Silicone 180 Degree U-Bend Elbow Coupler Hoses are designed and engineered to meet high-performance requirements specified in various industry standards, making them ideal for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling systems. Technical Specifications: Product Type: Silicone 180 Degree U-Bend Elbow Coupler Hose. Temperature Range: -65 deg F to +350 deg F (177 deg C). Reinforcement Layer: 4-ply. Hose Inside Diameter: 5/8 inch (16mm). Hose Outside Diameter: 1.03 inch (26mm). Leg Length of each side: 4-1/2 inches. Center Line Radius: 1 inch. Outer Width (W): 3 inches. Inner Width (B): 1 inch. Total Height: 6-1/2 inches. Wall Thickness: 4.5 mm (+/- 0.5 mm). Color: Black. UV and Ozone resistant. Remark: Silicone hose is compatible with water and coolant, but NOT compatible with fuel or oil.
