Key Features
Excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic oil, fuels, aromatics, and many organic solvents and chemicals.
Recommended Applications: Fuel return, fuel breather, crankcase ventilation, turbo oil return, power steering return, automatic transmission oil cooler.
Do not use this hose as a fuel line where the working pressure exceeds 55 psi.
Do not use the hose for the continuous handling of alcohol-based fuels.
Do not submerge the hose completely in fuel during use.

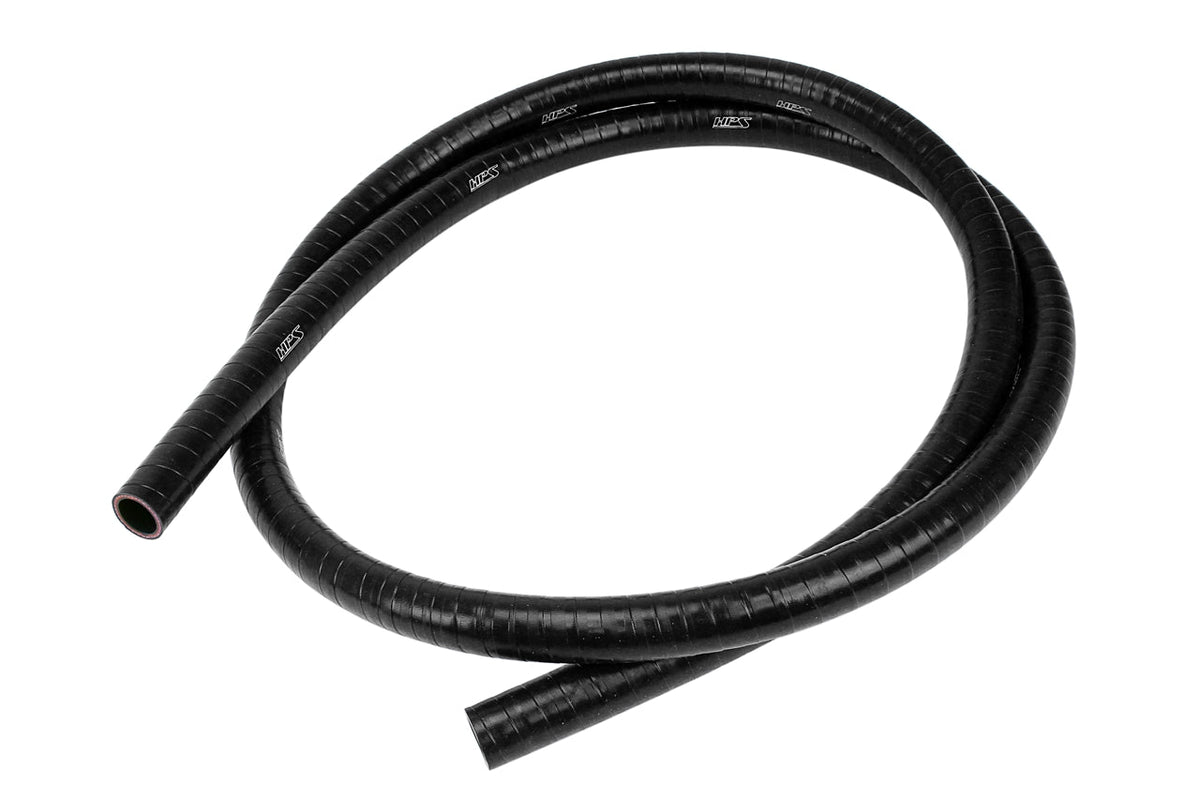

HPS Performance 1" FKM-lined silicone hose is a specially developed hose that features a fluoroelastomer liner inside our world-class silicone hose. With an inner diameter of 1 inch (25 mm), the HPS Performance FKM-lined silicone hose provides excellent resistance to the harsh environment of gasoline, diesel, and automotive oils. The FKM-lined hose can be used in applications where conventional silicone hoses would otherwise degrade due to the fluids flowing through them. Using an FKM liner minimizes permeation, evaporation, and degradation of the silicone hose. HPS Performance FKM-lined hose has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic oil, fuels, aromatics, and many organic solvents and chemicals. FKM can handle intermittent flow of ethanol-based fuels. Temperature range: -65°F to +350°F (177°C). Maximum working pressure: 34 psi. Hose ID: 1.00 inch (25 mm). Hose OD: 1.30 inch (33 mm). Length: 7 feet. Wall thickness: 4mm +/- 0.2mm. Bend radius: 8 inches. Recommended applications for HPS Performance FKM-lined silicone hose: fuel return, fuel breather, crankcase ventilation, turbo oil return, power steering return, automatic transmission oil cooler. Note: Do not use the hose as a fuel line where the working pressure exceeds 34 psi, and do not submerge the hose continuously in fuel.
